Overview
speedyBBT is an R package for fitting Bradley-Terry models to pairwise comparison data using fast, fully Bayesian MCMC. Given a set of pairwise judgements – which of two wards has the higher rate of forced marriage, which of two tennis players won a match, which of two neighbourhoods looks more deprived – speedyBBT estimates a quality parameter for every item being compared, along with full posterior uncertainty.
Inference is carried out using a Pólya-Gamma data augmentation scheme, which makes sampling fast even for large numbers of items and comparisons. The package supports:
- the standard Bradley-Terry model (
speedyBBTm()), optimised for speed when there are no ties or comparison-specific effects; - ties, comparison-specific effects (e.g. home advantage), and item-level covariates via a formula interface (
BBTm()); - multivariate normal prior distributions on the item quality parameters, so that structure between items (e.g. spatial adjacency) can be encoded directly into the prior;

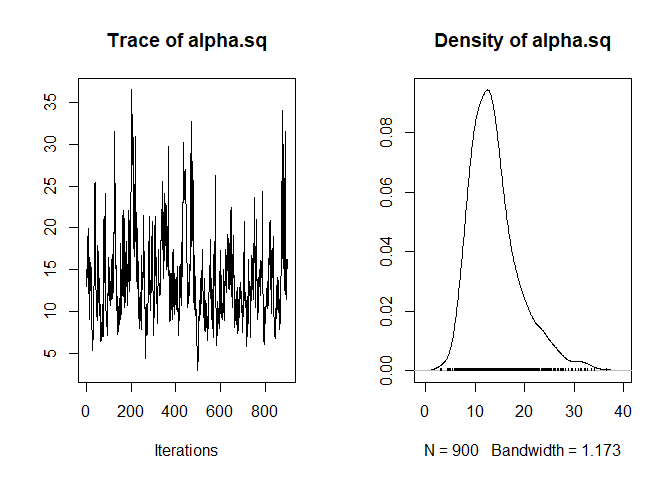

- optional hyperparameter inference on the prior scale.
The package can be used with data collected using the Comparative Judgement Interface.
Getting started
If you’re new to speedyBBT, start with the Getting started with speedyBBT vignette, which walks through fitting a model to real comparative-judgement data end to end.
Installation
Install the released version from CRAN:
install.packages("speedyBBT")
# for development version
# devtools::install_github("rowlandseymour/speedyBBT", dependencies = TRUE)Usage
The code chunks below show how to use the package to fit the Bradley–Terry model to a data set relating to forced marriage. Judges were shown pairs of wards and asked which had a higher rate of forced marriage. We can use the speedyBBTm function to draw samples for the full conditional distributions for the ward quality parameters. We place a multivariate normal prior distribution on the ward quality parameters. The covariance matrix of this prior distribution is constructed using a network representation of the wards in Nottinghamshire.
# View Data
data("forcedMarriage", package = "speedyBBT")
head(forcedMarriage$comparisons)
#> user time win lost
#> 1 1 16:08:26.316839 67 31
#> 2 1 16:08:47.888894 19 9
#> 3 1 16:09:14.093517 18 74
#> 4 1 16:09:23.666987 56 68
#> 5 1 16:09:42.930976 50 66
#> 6 1 16:09:51.129570 53 15
# Construct covariance matrix
expA <- expm::expm(forcedMarriage$adjacencyMatrix)
prior.var <- diag(diag(expA)^-0.5) %*% expA %*% diag(diag(expA)^-0.5)
# Fit model
library(speedyBBT)
forcedMarriageModel <- speedyBBTm(
outcome = rep(1, length(forcedMarriage$comparisons$win)),
player1 = forcedMarriage$comparisons$win,
player2 = forcedMarriage$comparisons$lost,
player.prior.var = prior.var
)
lambda_draws <- parameter(forcedMarriageModel, "lambda")
lambda_centered <- lambda_draws - rowMeans(lambda_draws)
# View Trace Plots

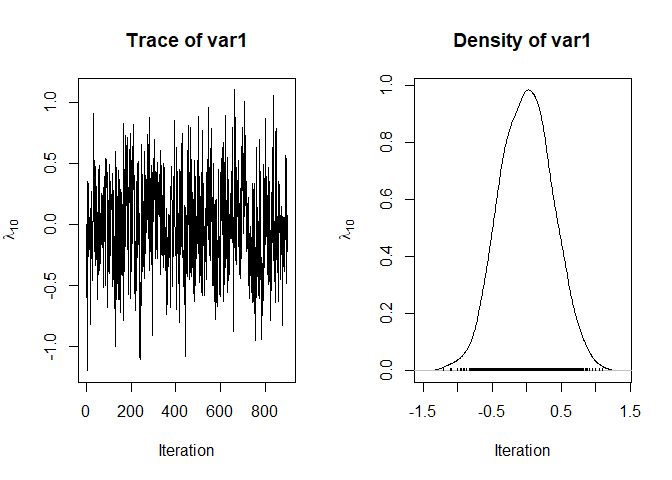

plot(lambda_centered[, 10],
type = "l",
xlab = "Iteration", ylab = expression(lambda[10])
)

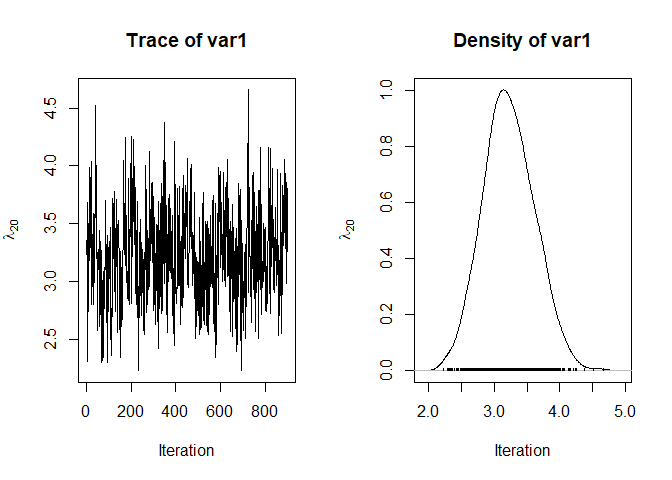

plot(lambda_centered[, 20],
type = "l",
xlab = "Iteration", ylab = expression(lambda[20])
)

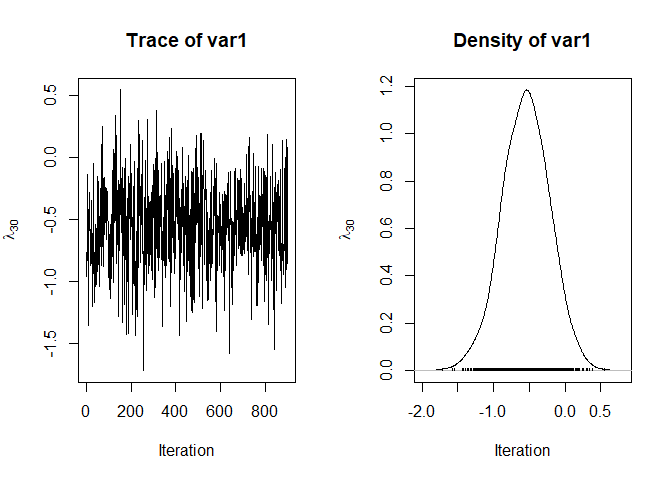

plot(lambda_centered[, 30],
type = "l",
xlab = "Iteration", ylab = expression(lambda[30])
)

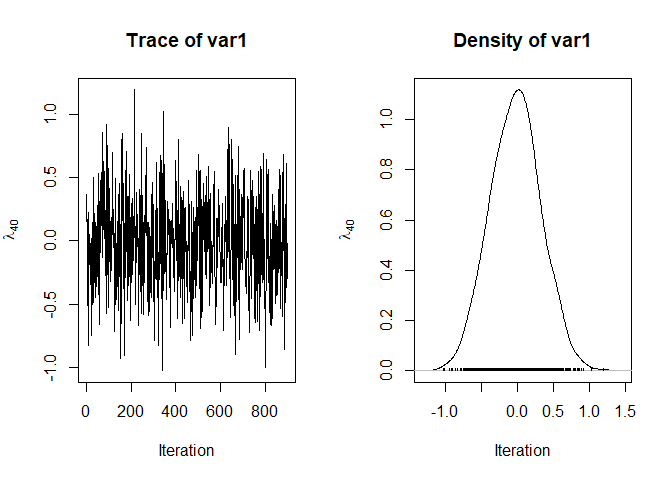

plot(lambda_centered[, 40],
type = "l",
xlab = "Iteration", ylab = expression(lambda[40])
)
# View Results
forcedMarriageModelMeans <- colMeans(lambda_draws)
forcedMarriageModelLowerCI <- apply(lambda_draws, 2, quantile, 0.025)
forcedMarriageModelUpperCI <- apply(lambda_draws, 2, quantile, 0.975)
forcedMarriageResults <- data.frame(
"ward" = forcedMarriage$wards$NAME,
"mean" = forcedMarriageModelMeans,
"lowerCI" = forcedMarriageModelLowerCI,
"upperCI" = forcedMarriageModelUpperCI
)
forcedMarriageResults <- forcedMarriageResults[order(forcedMarriageResults$mean), ]

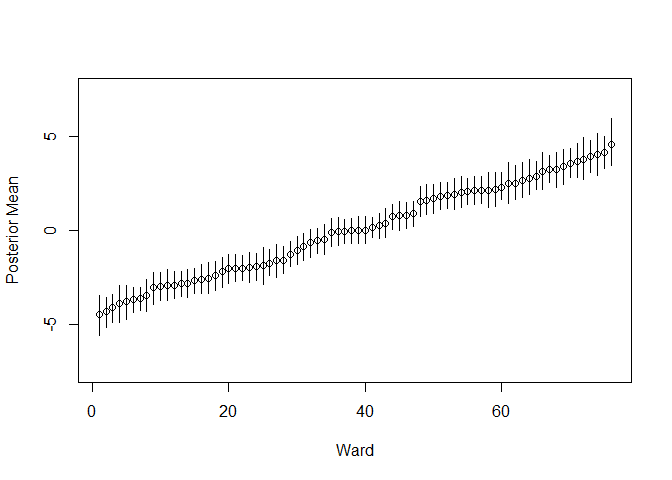

plot(forcedMarriageResults$mean, xlab = "Ward", ylab = "Posterior Mean", ylim = c(-7.5, 7.5))
segments(
x0 = 1:nrow(forcedMarriageResults), y0 = forcedMarriageResults$lowerCI,
y1 = forcedMarriageResults$upperCI
)
References
- J. Jiang, J. Marsh, and R. G. Seymour. 2026. A reduced basis decomposition approach to efficient data collection in pairwise comparison studies. Computational Statistics.
- R. G. Seymour, A. Nyarko-Agyei, H. R. McCabe,K. Severn,D.Sirl, T. Kypraios, A. Taylor. 2025. Comparative Judgement Modeling to Map Forced Marriage at Local Levels. Annals of Applied Statistics.
- R. G. Seymour, D. Sirl, S. Preston, and J. Goulding. 2023. Multi-Level Spatial Comparative Judgement Models to Map Deprivation. Proceedings of the Joint Statistical Meeting 2023.
- R. G. Seymour, D. Sirl, S. Preston,|. L. Dryden, B. Perrat, M. J. A. Ellis, and J. Goulding. 2022. The Bayesian Spatial Bradley-Terry model: Urban deprivation modelling in Tanzania. Journal of the Royal Statistical Society: C. 71 (2).
